SBB5089Z

Cascadable Active Bias InGaP/GaAs HBT MMIC Amplifier

Sirenza Microdevices

SBB5089Z Features

* Gain & Return Loss vs. Frequency (w/ BiasTees) S21 Available in Lead free, RoHS compliant, & Green packaging Wideband Flat Gain to 4GHz: +/-1.1dB P1dB = 20.4 dBm @ 1950MHz Single Fixed 5V Supply Robust 1000V ESD, Clas

SBB5089Z General Description

Sirenza Microdevices’ SBB-5089 is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 5V supply, the SBB-5089 does .

SBB5089Z Datasheet (143.71 KB)

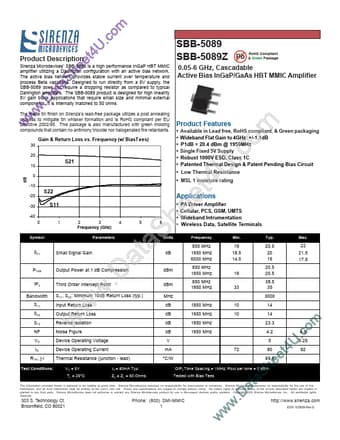

SBB5089Z Datasheet Preview — Preview of SBB5089Z PDF

Datasheet Details

Part number:

SBB5089Z

Manufacturer:

Sirenza Microdevices

File Size:

143.71 KB

Description:

Cascadable active bias ingap/gaas hbt mmic amplifier.
