SBF-4089Z, SBF-4089 Cascadable InGaP/GaAs HBT MMIC Amplifier

SBF-4089Z Description

Product .
Sirenza Microdevices’ SBF-4089 is a high performance InGaP/ GaAs Heterojunction Bipolar Transistor MMIC Amplifier.

SBF-4089Z Features

* Available in Lead Free, RoHS compliant, & Green packaging
* IP3 = 42dBm @ 240MHz
* Stable Gain Over Temperature
* Robust 1000V ESD, Class 1C
* Operates From Single Supply
* Low Thermal Resistance 0 -5 -10 -15 -20 -25 IRL,ORL(dB) 14 13.5 13 12.5 12

SBF-4089Z Applications

* Receiver IF Amplifier
* Cellular, PCS, GSM, UMTS
* PA Driver Amp
* Wireless Data, Satellite Terminals U nits dB Frequency 70MHz 240 MHz 500 MHz 70MHz 240 MHz 400 MHz 70MHz 240 MHz 400 MHz 500 MHz 500 MHz 500 MHz 4.5 82 Min. 13.3 13.2 Typ. 14.9 14.8 14.7 20.1 20.1 19

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBF-4089Z, SBF-4089. Please refer to the document for exact specifications by model.

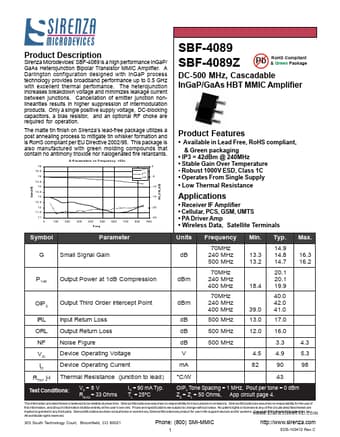

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBF-4089Z, SBF-4089
Manufacturer
Sirenza Microdevices
File Size
233.02 KB
Datasheet
SBF-4089_SirenzaMicrodevices.pdf
Description
Cascadable InGaP/GaAs HBT MMIC Amplifier
Note
This datasheet PDF includes multiple part numbers: SBF-4089Z, SBF-4089.
Please refer to the document for exact specifications by model.
