SGA-5589, SGA-5589Z Cascadable SiGe HBT MMIC Amplifier

SGA-5589 Description

Product .
The SGA-5589 is a high performance SiGe HBT MMIC Amplifier.

SGA-5589 Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging
* High Gain : 20.8 dB at 1950 MHz
* Cascadable 50 Ohm
* Operates From Single Supply

SGA-5589 Applications

* PA Driver Amplifier
* Cellular, PCS, GSM, UMTS
* IF Amplifier
* Wireless Data, Satellite Symbol Parameter Units Frequency Min. Typ. Max. G Small Signal Gain dB 850 MHz 21.5 24.0 26.5 dB 1950 MHz 20.8 dB 2400 MHz 18.9 P1dB Output Power at 1dB Compre

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SGA-5589, SGA-5589Z. Please refer to the document for exact specifications by model.

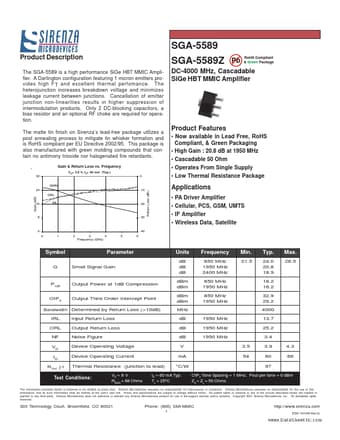

datasheet Preview Page 2 datasheet Preview Page 3
