SXA-389Z Medium Power GaAs HBT Amplifier

Sirenza Microdevices’ SXA-389 amplifier is a high efficiency GaAs Heterojunction Bipolar Transistor (HBT) MMIC housed in low-cost surface-mountable plastic package. These HBT MMICs are fabricated using molecular beam epitaxial growth technology which produces reliable and consistent performance from.

SXA-389Z Features

* On-chip Active Bias Control, Single 5V Supply

* High Output 3rd Order Intercept: +42 to +44 dBm typ.

* High P1dB : +25 dBm typ.

* High Gain: +19 dB at 850 MHz

* High Efficiency: consumes only 600 mW

* Patented High Reliability GaAs HBT Technology

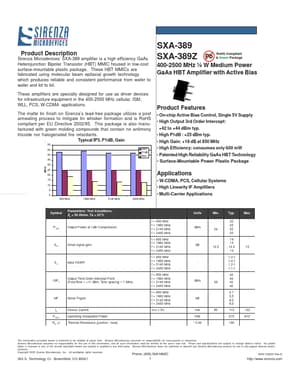

SXA-389_SirenzaMicrodevices.pdf

SXA-389Z Datasheet Preview — This datasheet PDF includes multiple part numbers: SXA-389Z, SXA-389. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SXA-389Z, SXA-389

Manufacturer:

Sirenza Microdevices

File Size:

157.31 KB

Description:

Medium power gaas hbt amplifier.

Note:

This datasheet PDF includes multiple part numbers: SXA-389Z, SXA-389.
Please refer to the document for exact specifications by model.
