SXT-289 Datasheet, Amplifier, Sirenza Microdevices

SXT-289 Features

  • Amplifier
  • Patented High Reliability GaAs HBT Technology
  • High Output 3rd Order Intercept : +42 dBm typ.
  • at 2450 MHz Surface-Mountable Power Plastic Package IP3 P1dB

PDF File Details

Part number:

SXT-289

Manufacturer:

Sirenza Microdevices

File Size:

330.00kb

Download:

📄 Datasheet

Description:

Medium power gaas hbt amplifier. Sirenza Microdevices’ SXT-289 amplifier is a high efficiency GaAs Heterojunction Bipolar Transistor (HBT) MMIC housed in low-cost sur

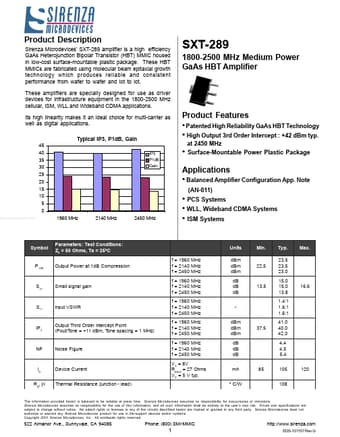

Datasheet Preview: SXT-289 📥 Download PDF (330.00kb)
Page 2 of SXT-289 Page 3 of SXT-289

SXT-289 Application

  • Applications Its high linearity makes it an ideal choice for multi-carrier as well as digital applications. Typical IP3, P1dB, Gain 45 40 35 30 25
