ST1624 - Capacitive Touch Screen Controller

ST1624 Description

ST1624 Capacitive Touch Screen Controller Datasheet Version 1.1 2014/10/22 Note: Sitronix Technology Corp.reserves the right to change the content.
Pin # 8~1 9 24~10 25 26 Pin Name RX8~RX1 VCM TX19~TX5 V18 RESET I/O Description I Receiver channel P Common mode voltage, connect to 1uF capacitor.

ST1624 Features

* MCU based touch controller Operation voltage
* VDD = 2.7V ~ 3.6V
* IOVDD = 1.6V ~ 3.6V Operation Temperature: -20℃ ~ 80℃ Storage Temperature: -40℃ ~ 125℃ Interface
* I2C (slave) Sensor:
* 15 TX, 9 RX Single finger handwriting five fingers detection and tracking Capaci

ST1624 Applications

* Cell phones PDAs Portable instruments Touch screen monitors Electrical papers Gaming machines Pointing devices PC peripherals Ver 1.1 Page 3/13 2014/10/22 2 PACKAGE INFORMATION ST1624 RX1 1 RX2 2 RX3 3 RX4 4 RX5 5 RX6 6 RX7 7 RX8 8 ST1624 33 GND 24 TX19 23 TX18 22 TX17 21 TX16 20 TX15 19 TX1

📥 Download Datasheet

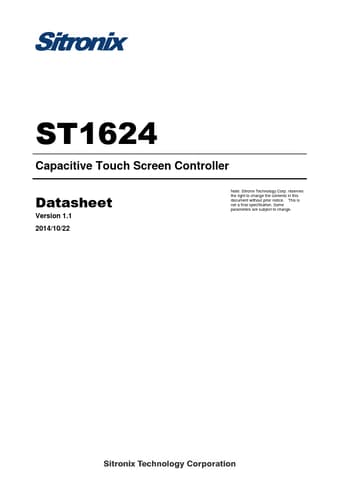

Preview of ST1624 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST1624
Manufacturer
Sitronix
File Size
176.81 KB
Datasheet
ST1624-Sitronix.pdf
Description
Capacitive Touch Screen Controller
