ST1615 - Capacitive Touch Screen Controller

ST1615 Description

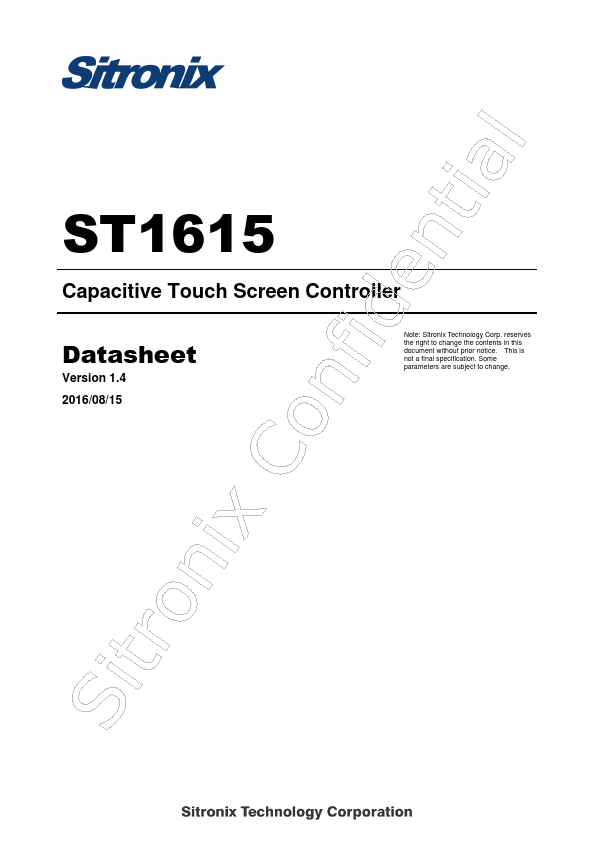

ST1615 Capacitive Touch Screen Controller Datasheet Version 1.4 2016/08/15 Note: Sitronix Technology Corp.reserves the right to change the content.
Pin # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Pin Name RESET P11/INT SDA SCL IOVDD VDD RX0 RX2 NC RX4 RX6 RX8 RX10 TX2 TX.

ST1615 Features

* MCU based touch controller Operation voltage
* VDD = 2.7V ~ 3.6V
* IOVDD = 1.6V ~ 3.6V Operation Temperature: -20℃ ~ 80℃ Storage Temperature: -40℃ ~ 125℃ Interface
* I2C (slave) Sensor
* 8 TX, 6 RX Single finger handwriting five fingers detection and tracking Capaciti

ST1615 Applications

* SmartWatch Wearable Devices Portable Instruments Gaming machines Pointing devices V18 VDD IOVDD GND RESET Ver 1.4 Page 3/12 2016/08/15 2 PACKAGE INFORMATION ST1615 24 V18 23 GND 22 TX13 21 NC 20 TX11 19 TX10 RX0 7 RX2 8 NC 9 RX4 10 RX6 11 RX8 12 Figure 2-1 ST1615 Package Pin Configuration

📥 Download Datasheet

Preview of ST1615 PDF

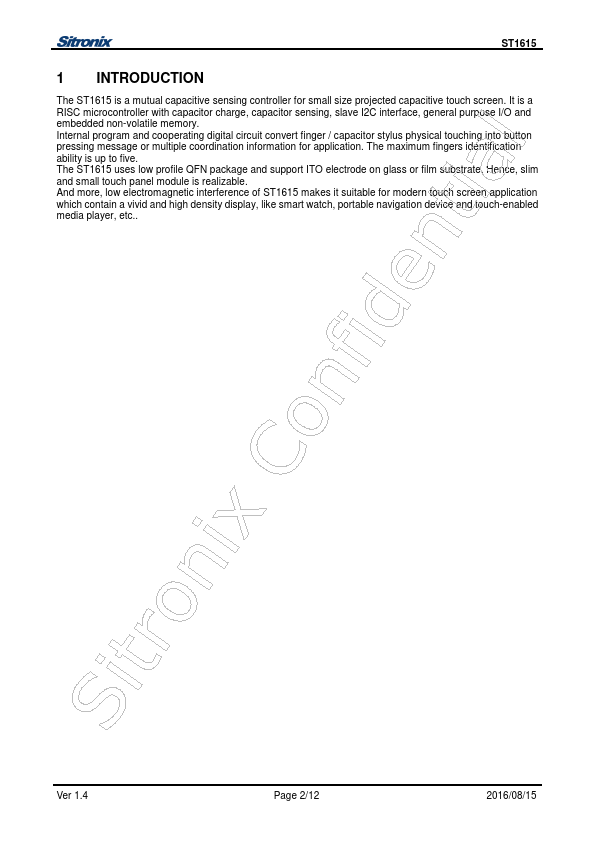

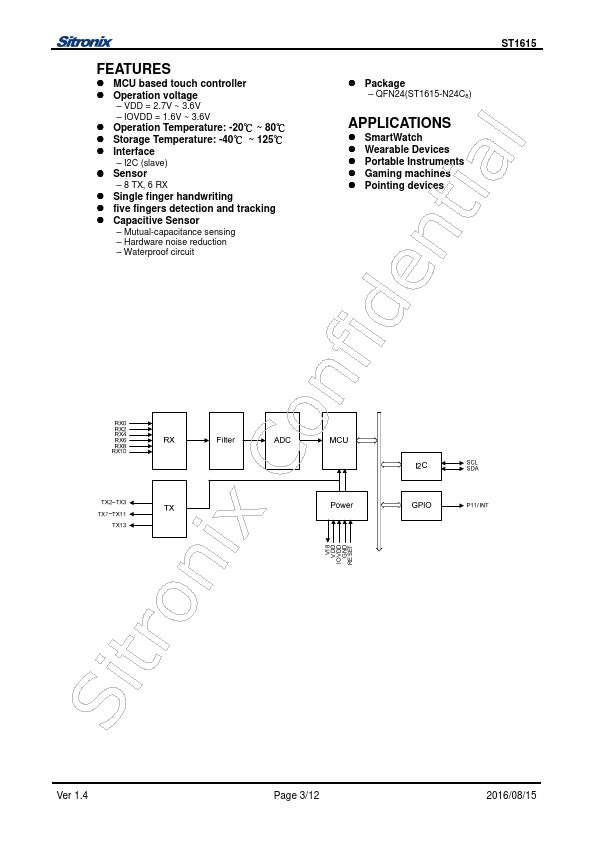

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST1615
Manufacturer
Sitronix
File Size
267.25 KB
Datasheet
ST1615-Sitronix.pdf
Description
Capacitive Touch Screen Controller
