AAT3113 Datasheet - Skyworks Solutions

AAT3113 High Efficiency 1.5X Fractional Charge Pumps

The AAT3113 and AAT3114 are low noise, constant frequency charge pump DC/DC converters that use fractional (1.5X) conversion to increase efficiency in white LED applications. The devices can be used to produce current levels up to 20mA for each output from a 2.7V to 5.5V input. A low external parts .

AAT3113 Features

* AAT3113: Four Outputs

* AAT3114: Six Outputs

* 20mA Full-Scale Current

* Simple Serial Control (S2Cwire) Interface ▪ 32-Position Logarithmic Scale with Digital Control

* Low Noise Constant Frequency Operation

* 33% Less Input Current Than Doubler Cha

AAT3113-SkyworksSolutions.pdf

Preview of AAT3113 PDF

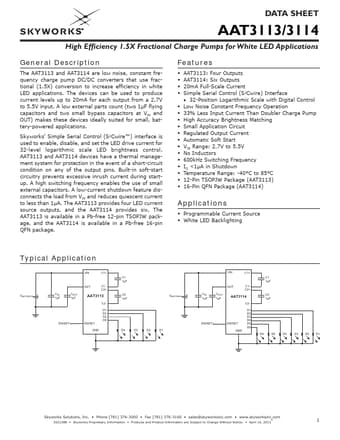

AAT3113 Datasheet Preview Page 2 AAT3113 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT3113

Manufacturer:

Skyworks Solutions

File Size:

682.55 KB

Description:

High efficiency 1.5x fractional charge pumps.
