AAT3104 Datasheet - Advanced Analogic Technologies

AAT3104, Low Cost 1x/2x 4 Channel Charge Pump WLED Driver

PRODUCT DATASHEET AAT3104178 ChargePumpTM General .
The AAT3104 is a charge-pump based, current-source white LED driver capable of driving one to four LEDs up to 30mA, each.

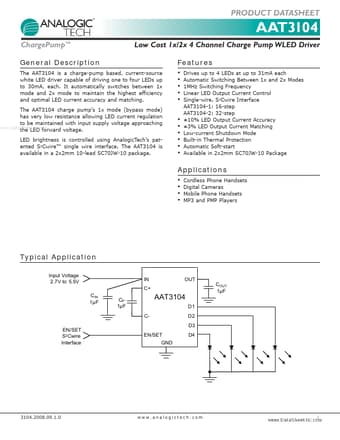

datasheet Preview Page 1 from Datasheet4u.com

AAT3104_AdvancedAnalogicTechnologies.pdf

AAT3104 Datasheet Preview — Preview of AAT3104 PDF

Datasheet Details

Part number:

AAT3104

Manufacturer:

Advanced Analogic Technologies

File Size:

1.97 MB

Description:

Low Cost 1x/2x 4 Channel Charge Pump WLED Driver

Features

* Drives up to 4 LEDs at up to 31mA each Automatic Switching Between 1x and 2x Modes 1MHz Switching Frequency Linear LED Output Current Control Single-wire, S2Cwire Interface AAT3104-1: 16-step AAT3104-2: 32-step ±10% LED Output Current Accuracy ±3% LE

Applications

* Cordless Phone Handsets Digital Cameras Mobile Phone Handsets MP3 and PMP Players Typical Application Input Voltage 2.7V to 5.5V C IN 1µF IN C+ CP 1µF CEN/SET S2Cwire Interface OUT C OUT 1µF AAT3104 D1 D2 D3 EN/SET GND D4 3104.2008.09.1.0 www. analogictech.
