AAT3113, AAT Datasheet - Advanced Analogic Technologies

AAT3113 High Efficiency 1.5X Fractional Charge Pumps For White LED Applications

The AAT3113 and AAT3114/14A are low noise, constant frequency charge pump DC/DC converters that use fractional (1.5X) conversion to increase efficiency in white LED applications. The devices can be used to produce current levels up to 20mA for each output from a 2.7V to 5.5V input. A low external pa.

AAT3113 Features

* AnalogicTech’s Simple Serial Control™ (S2Cwire™) interface is used to enable, disable, and set the LED drive current for 32-level

AAT-3113.pdf

This datasheet PDF includes multiple part numbers: AAT3113, AAT. Please refer to the document for exact specifications by model.

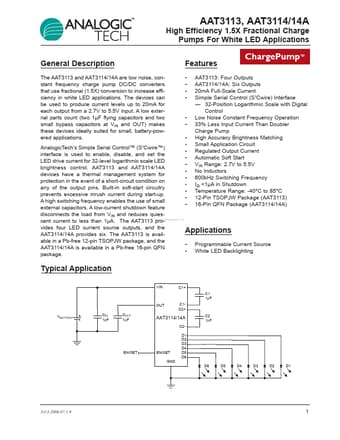

AAT3113 Datasheet Preview Page 2 AAT3113 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT3113, AAT

Manufacturer:

Advanced Analogic Technologies

File Size:

301.40 KB

Description:

High efficiency 1.5x fractional charge pumps for white led applications.

Note:

This datasheet PDF includes multiple part numbers: AAT3113, AAT.
Please refer to the document for exact specifications by model.
