AS127-59

GaAs IC Transfer Switch

AS127-59 Features

* High Linearity (+45 dBm IP3 @ 0.9 GHz)

* Small MSOP-8 Plastic Package

* Low Insertion Loss (0.4 dB @ 0.9 GHz)

* Simultaneous T/R Switching PIN 1 0.012 (0.30 mm) PIN 1 INDICATOR MSOP-8 0.0256 (0.65 mm) TYP. 0.118 (3.00 mm) ± 0.004 (0.1 mm) SQ. 0.193 (4.90 mm) REF. Description Th

AS127-59 General Description

The AS127-59 is a 4 port switch designed to combine T/R and antenna changeover switching capability within one device. This switch has two 5 V controls and is ideal for applications requiring low power consumption. The AS127-59 has excellent performance to 2 GHz making it suitable for dual-band hand.

AS127-59 Datasheet (57.58 KB)

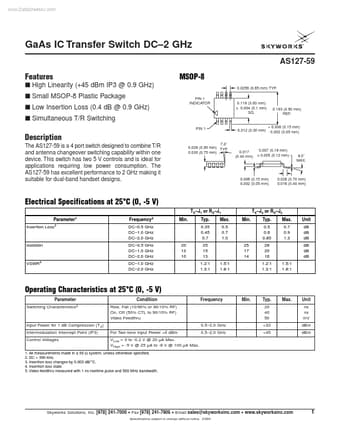

Preview of AS127-59 PDF

Datasheet Details

Part number:

AS127-59

Manufacturer:

Skyworks Solutions

File Size:

57.58 KB

Description:

Gaas ic transfer switch.
