SC02201518

Mis Chip Capacitors

SC02201518 Features

* Readily Available From Stock

* High Reliability Silicon Oxide

* Nitride Dielectric

* Low Loss

* Typically 0.04 dB in a 50 Ω System

* Operation through 26 GHz

* Wide Temperature Operation Absolute Maximum Ratings Characteristic Operating Temp Range (TOP) Value -65

SC02201518 General Description

Alpha’s MIS Chip Capacitors are available in a wide range of sizes and capacitance values. They are frequently used in applications requiring DC blocking, and RF bypassing, or as a fixed capacitance tuning element in filters, oscillators, and matching networks. The devices have a dielectric composed.

SC02201518 Datasheet (96.13 KB)

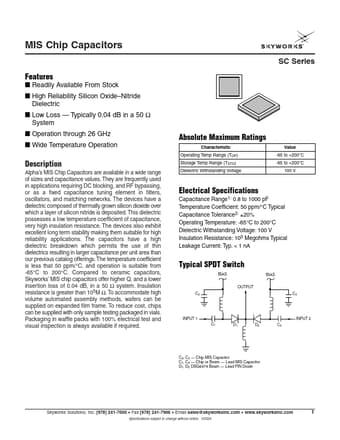

Preview of SC02201518 PDF

Datasheet Details

Part number:

SC02201518

Manufacturer:

Skyworks Solutions

File Size:

96.13 KB

Description:

Mis chip capacitors.
