SKY73010 - Direct Quadrature Modulator

Datasheet Summary

Description

The SKY73010 is an integrated quadrature modulator for direct modulation of high frequency Amplitude Modulated (AM), Phase Modulated (PM), or compound carriers.

Features

  • Broad RF and LO frequency range: 300 to 2500 MHz.
  • Carrier suppression greater than 35 dBc.
  • Sideband suppression greater than 45 dBc.
  • Modulation bandwidth DC to 250 MHz.
  • Noise floor less than.
  • 153 dBm/Hz.
  • Broadband LO/RF flatness.
  • RFLGA™ (16-pin, 4 x 4 mm) Pb-free package (MSL3, 260 °C per JEDEC J-STD-020) QREF GND IREF ISIG QSIG 1 16 15 14 13 ISIG IREF GND 2 12 GND GND 3 11 GND LO LO 4 10.
  • 45 +45.

📥 Download Datasheet

Datasheet preview – SKY73010

Datasheet Details

Part number SKY73010
Manufacturer Skyworks Solutions
File Size 168.38 KB
Description Direct Quadrature Modulator
Datasheet download datasheet SKY73010 Datasheet
Additional preview pages of the SKY73010 datasheet.

📁 Similar Datasheet

  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)
  • SKY73103-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73112-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73120-11 - Voltage Controlled Oscillator (Skyworks)
Other Datasheets by Skyworks Solutions
  • SKY73012 - Direct Quadrature Demodulator
  • SKY73001 - Direct Conversion Mixer
  • SKY73009 - Direct Quadrature Demodulator
  • SKY73020 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73021 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73023 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73032 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73033 - High Gain and Linearity Diversity Downconversion Mixer

Full PDF Text Transcription

Click to expand full text

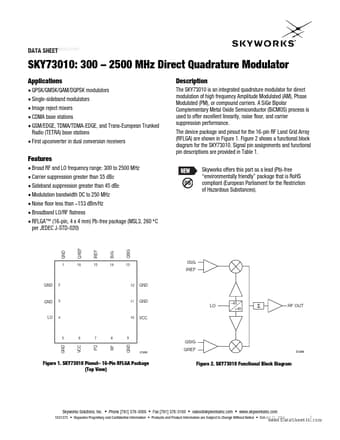

www.DataSheet4U.com DATA SHEET SKY73010: 300 – 2500 MHz Direct Quadrature Modulator Applications • QPSK/GMSK/QAM/DQPSK modulators • Single-sideband modulators • Image reject mixers • CDMA base stations • GSM/EDGE, TDMA/TDMA-EDGE, and Trans-European Trunked Radio (TETRA) base stations • First upconverter in dual conversion receivers Description The SKY73010 is an integrated quadrature modulator for direct modulation of high frequency Amplitude Modulated (AM), Phase Modulated (PM), or compound carriers. A SiGe Bipolar Complementary Metal Oxide Semiconductor (BiCMOS) process is used to offer excellent linearity, noise floor, and carrier suppression performance. The device package and pinout for the 16-pin RF Land Grid Array (RFLGA) are shown in Figure 1.
