SMV1213-040LF - 0402 Silicon Hyperabrupt Tuning Varactor Diode

Datasheet Summary

Description

The SMV1213-040LF is a silicon hyperabrupt junction varactor diode specifically designed for 3 V platforms.

Features

  • Low series resistance: 1.4 Ω typical.
  • High capacitance ratio at low reverse voltage: CT1/CT2.5 = 2.0 nominal.
  • Industry-standard 0402 footprint.
  • Packages rated MSL1, 260 °C per JEDEC J-STD-020.

📥 Download Datasheet

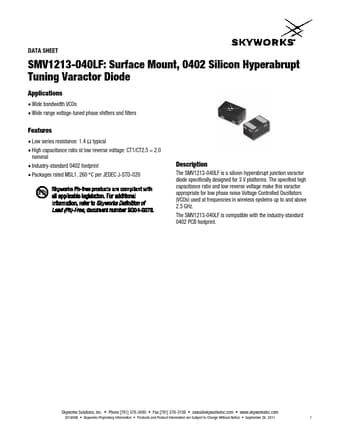

Datasheet preview – SMV1213-040LF

Datasheet Details

Part number SMV1213-040LF
Manufacturer Skyworks Solutions
File Size 413.55 KB
Description 0402 Silicon Hyperabrupt Tuning Varactor Diode
Datasheet download datasheet SMV1213-040LF Datasheet
Additional preview pages of the SMV1213-040LF datasheet.

📁 Similar Datasheet

  • SMV1213-001 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1213-004 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1213-011 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1213-074 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1213-079 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1210 - Multilayer Chip Varistor (SEMIWILL)
  • SMV1211 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1211-001 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1212-001 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
  • SMV1212-004 - Hyperabrupt Junction Tuning Varactors (Alpha Industries)
Other Datasheets by Skyworks Solutions

Full PDF Text Transcription

Click to expand full text
DATA SHEET SMV1213-040LF: Surface Mount, 0402 Silicon Hyperabrupt Tuning Varactor Diode Applications • Wide bandwidth VCOs • Wide range voltage-tuned phase shifters and filters Features • Low series resistance: 1.4 Ω typical • High capacitance ratio at low reverse voltage: CT1/CT2.5 = 2.0 nominal • Industry-standard 0402 footprint • Packages rated MSL1, 260 °C per JEDEC J-STD-020 Description The SMV1213-040LF is a silicon hyperabrupt junction varactor diode specifically designed for 3 V platforms. The specified high capacitance ratio and low reverse voltage make this varactor appropriate for low phase noise Voltage Controlled Oscillators (VCOs) used at frequencies in wireless systems up to and above 2.5 GHz. The SMV1213-040LF is compatible with the industry-standard 0402 PCB footprint.
