AS200-313LF

PHEMT GaAs IC 2W High-Linearity 5-6GHz T/R Switch

AS200-313LF Features

* Operating frequency 5

* 6 GHz l High linearity 50 dBm IIP3 l High power P -1 dB > 33 dBm l Low positive control voltage 3 V l Low-cost, ultrasmall QFN package l  A  vailable lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C per JEDEC J-STD-020 l 2 J1 J3 CBL 3 4 V2 Description The AS200

AS200-313LF General Description

The AS200-313LF is a 5

*6 GHz PHEMT GaAs switch. Designed for transmit-receive applications, this device is capable of switching 2 W microwave signals with 3 V control while maintaining high-linearity performance. The switch covers the entire 802.11a frequency ranges of 5.15

*5.825 GHz.

AS200-313LF Datasheet (179.40 KB)

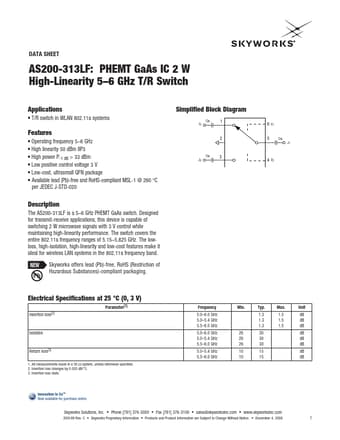

Preview of AS200-313LF PDF

Datasheet Details

Part number:

AS200-313LF

Manufacturer:

Skyworks

File Size:

179.40 KB

Description:

Phemt gaas ic 2w high-linearity 5-6ghz t/r switch.
data sheet AS200-313LF: PHEMT GaAs IC 2 W High-Linearity 5

*6 GHz T/R Switch Applications l Simplified Block Diagram J2 CBL T/R switch in WL.
