As200-313

As200-313:PHEMT GAAS

As200-313 Features

* Operating Frequency 5

* 6 GHz

* High Linearity 50 dBm IIP3

* High Power P-1 dB > 33 dBm

* Low Positive Control Voltage 3 V

* Low Cost Ultra Small QFN Package 0.118 5 (3.00 mm) BSC 3 4 TOP VIEW 1.02 6 1 SIDE VIEW 0.35 ± 0.08 mm 0.95 BSC 5 4 3 0.64 BSC Description

As200-313 General Description

The AS200-313 is a 5

*6 GHz PHEMT GaAs switch. Designed for transmit-receive applications, this device is capable of switching 2 W microwave signals with 3 V control while maintaining high linearity performance. The switch covers the entire 802.11a frequency ranges of 5.15

*5.825 GHz. .

As200-313 Datasheet (456.29 KB)

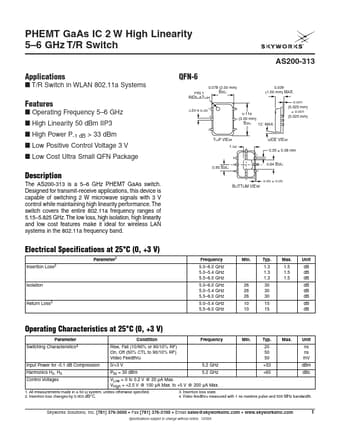

Preview of As200-313 PDF

Datasheet Details

Part number:

As200-313

Manufacturer:

Skyworks

File Size:

456.29 KB

Description:

As200-313:phemt gaas.
PHEMT GaAs IC 2 W High Linearity 5

*6 GHz T/R Switch AS200-313 Applications
* T/R Switch in WLAN 802.11a Systems QFN-6 0.078 (2.00 mm) BSC.
