DMF2076-000, DMF2820-000, Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices

DATA SHEET DME, DMF, DMJ Series: Silicon Beam-Lead Schottky Mixer Diode (Singles, Pairs, and Quads) Bondable Beam-Lead Devices Applications * Micr.
Skyworks beam-lead silicon Schottky barrier mixer diodes are designed for applications through 40 GHz.

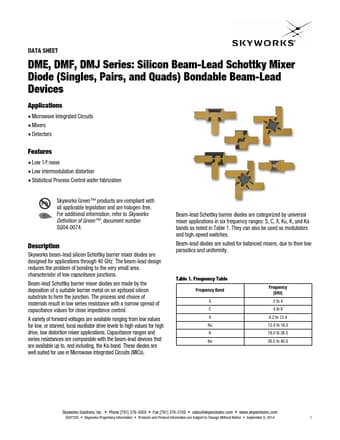

datasheet Preview Page 1 from Datasheet4u.com

DMF2820-000-Skyworks.pdf

DMF2076-000 Datasheet Preview — This datasheet PDF includes multiple part numbers: DMF2076-000, DMF2820-000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DMF2076-000, DMF2820-000

Manufacturer:

Skyworks

File Size:

744.39 KB

Description:

Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices

Note:

This datasheet PDF includes multiple part numbers: DMF2076-000, DMF2820-000.
Please refer to the document for exact specifications by model.

Features

* Low 1/f noise
* Low intermodulation distortion
* Statistical Process Control wafer fabrication Skyworks Green™ products are compliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Deﬁnition of Green™, document number SQ04-0074. Des

Applications

* Microwave Integrated Circuits
* Mixers
