DMF2078-000, DMF2820-000 Datasheet - Skyworks

DMF2078-000 Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices

Skyworks beam-lead silicon Schottky barrier mixer diodes are designed for applications through 40 GHz. The beam-lead design reduces the problem of bonding to the very small area characteristic of low capacitance junctions. Beam-lead Schottky barrier mixer diodes are made by the deposition of a suita.

DMF2078-000 Features

* Low 1/f noise

* Low intermodulation distortion

* Statistical Process Control wafer fabrication Skyworks Green™ products are compliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Definition of Green™, document number SQ04-0074. Des

DMF2078-000, DMF2820-000 Datasheet

This datasheet PDF includes multiple part numbers: DMF2078-000, DMF2820-000. Please refer to the document for exact specifications by model.

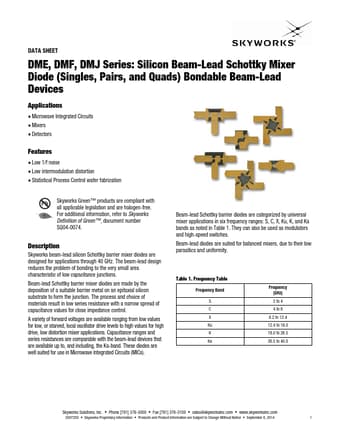

DMF2078-000 Datasheet Preview Page 2 DMF2078-000 Datasheet Preview Page 3

Datasheet Details

Part number:

DMF2078-000, DMF2820-000

Manufacturer:

Skyworks

File Size:

744.39 KB

Description:

Silicon beam-lead schottky mixer diode bondable beam-lead devices.

This datasheet PDF includes multiple part numbers: DMF2078-000, DMF2820-000. Please refer to the document for exact specifications by model.
