DMF4102-099 Schottky Diode Quad Mixer Chips Supplied on Film Frame

Skyworks

DMF4102-099 Description

PRELIMINARY DATA SHEET Schottky Diode Quad Mixer Chips Supplied on Film Frame .
This Skyworks family of Si Schottky diodes are configured as bridge quads intended for use in double-balanced mixers.

DMF4102-099 Features

* Designed for high-performance, double-balanced mixers
* Three barrier heights available
* Schottky diodes supplied 100% tested, sawn, mounted on film frame
* Low cost

DMF4102-099 Applications

* in which moderate-power local oscillator signals are available; and, DMJ4103-099 is composed of highbarrier diodes for applications that require very low distortion performance and have higher local oscillator power available. These bridge quads are 100% tested, sawn a

📥 Download Datasheet

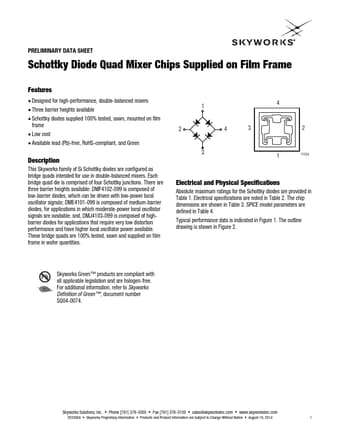

DMF4102-099 Datasheet Preview — Preview of DMF4102-099 PDF

Datasheet Details

Part number: DMF4102-099
Manufacturer: Skyworks
File Size: 306.05 KB
Datasheet: DMF4102-099-Skyworks.pdf
Description: Schottky Diode Quad Mixer Chips Supplied on Film Frame
