DMF4102

Silicon Beamless Schottky Diodes

Skyworks

DMF4102 Features

* Mechanically rugged design

* Three barrier heights for optimized mixer performance

* Wide product range: series pair, ring, bridge, and eight-diode rings

* Use in ring or crossover designs in double balanced mixers

* Virtually any LO requirement can be met with choice of barrie

DMF4102 General Description

Skyworks beamless diode family is designed for a high degree of device reliability in both commercial and industrial uses. The diodes are designed to offer the utmost in performance as well as achieving price sensitive cost targets for commercial systems. A.

DMF4102 Datasheet (476.73 KB)

Rating: 1 ★ (2 votes)

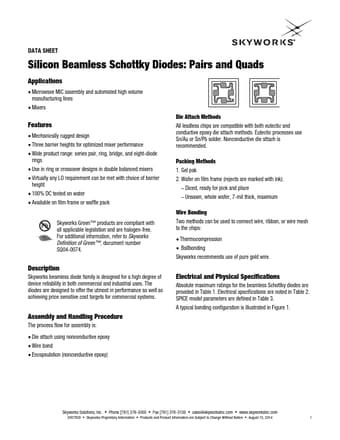

DMF4102 Datasheet Preview — Preview of DMF4102 PDF

Datasheet Details

Part number:

DMF4102

Manufacturer:

Skyworks

File Size:

476.73 KB

Description:

Silicon beamless schottky diodes.
DATA SHEET Silicon Beamless Schottky Diodes: Pairs and Quads Applications Microwave MIC assembly and automated high volume manufacturing lines .
