S106-X Datasheet - Solid State Optronic

S106-X Relay

The S106-X is a bi-directional, single-pole, single-throw, normally open multipurpose solid-state relay. The circuit is composed of one input IR LED with a series limiting resistor which activates an optically coupled IC on the output that controls the firing angle of two back-to-back SCRs. This cir.

S106-X Features

* Zero-Volt Cross Switching

* Input Series Limiting Resistor (300Ω TYP)

* High Blocking Voltage (400V MIN)

* High Transient Immunity

* 0.8A Maximum Continuous Current

* Low Input Control Current

* Long Life / High Reliability

* RoHS / P

S106-X-SolidStateOptronic.pdf

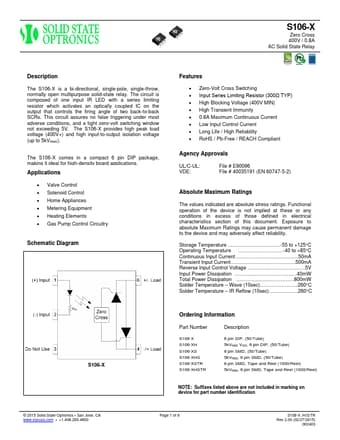

S106-X Datasheet Preview — Preview of S106-X PDF

Datasheet Details

Part number:

S106-X

Manufacturer:

Solid State Optronic

File Size:

403.07 KB

Description:

Relay.
