S110 - Relay

Description

The S110 is a bi-directional, single-pole, single-throw, normally open multipurpose relay.

The circuit is composed of one LED on the input side which activates an optically coupled IC on the output - controlling the firing angle of two back-to-back SCRs.

Features

  • Zero-Volt Cross Switching.
  • High transient immunity.
  • 400V blocking voltage.
  • 0.8A maximum continuous current.
  • High input-to-output isolation.
  • Solid state reliability.

📥 Download Datasheet

Datasheet Details

Part number S110
Manufacturer Solid State Optronic
File Size 233.13 KB
Description Relay
Datasheet download datasheet S110 Datasheet

📁 Similar Datasheet

  • S110 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (YS)
  • S110 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • S110 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (CDIL)
  • S1101 - Thermocouple Module Manual (ART Technology)
  • S11012-01CR - Color sensor (HAMAMATSU)
  • S11049 - Photo-IC (HAMAMATSU)
  • S1104SXU30 - Flat Base Rectifier Diode (DYNEX)
  • S11059-01WT - I2C interface-compatible color sensor (Hamamatsu)
  • S11059-02DT - Color sensors (Hamamatsu)
  • S11059-03DS - Color sensors (Hamamatsu)
Other Datasheets by Solid State Optronic

Full PDF Text Transcription

Click to expand full text

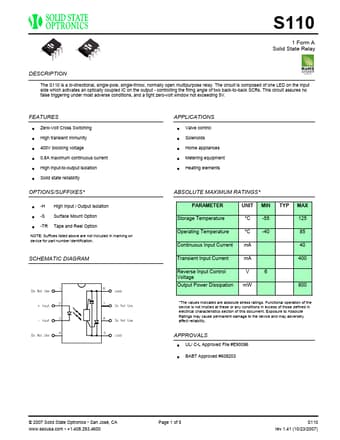

S110 1 Form A Solid State Relay DESCRIPTION The S110 is a bi-directional, single-pole, single-throw, normally open multipurpose relay. The circuit is composed of one LED on the input side which activates an optically coupled IC on the output - controlling the firing angle of two back-to-back SCRs. This circuit assures no false triggering under most adverse conditions, and a tight zero-volt window not exceeding 5V. FEATURES • Zero-Volt Cross Switching • High transient immunity • 400V blocking voltage • 0.
