1T417 Variable Capacitance Diode

Sony Corporation

Description

1T417 Variable Capacitance Diode .
The 1T417 is a variable capacitance diode designed for electronic tuning of BS/CS tuners using a super-small-miniature flat package (SSVC).

📥 Download Datasheet

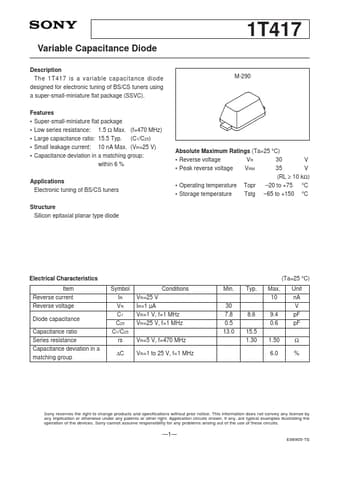

1T417 Datasheet Preview — Preview of 1T417 PDF

Datasheet Specifications

Part number: 1T417
Manufacturer: Sony Corporation
File Size: 47.48 KB
Datasheet: 1T417_SonyCorporation.pdf
Description: Variable Capacitance Diode

Features

* Super-small-miniature flat package
* Low series resistance: 1.5 Ω Max. (f=470 MHz)
* Large capacitance ratio: 15.5 Typ. (C1/C25)
* Small leakage current: 10 nA Max. (VR=25 V)

Applications

* Electronic tuning of BS/CS tuners Structure Silicon epitaxial planar type diode M-290 Absolute Maximum Ratings (Ta=25 °C)
* Reverse voltage VR 30 V
* Peak reverse voltage VRM 35 V (RL ≥ 10 kΩ)
* Operating temperature Topr
* 20 to +75 °C
* Storage temperature T
