1T402 - Variable Capacitance Diode

Sony Corporation

📥 Download Datasheet

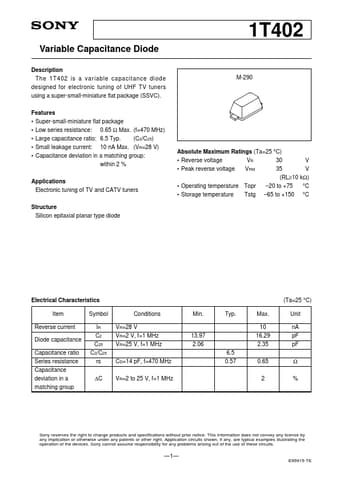

1T402 Datasheet Preview — Preview of 1T402 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	1T402
Manufacturer	Sony Corporation
File Size	52.48 KB
Description	Variable Capacitance Diode
Datasheet	1T402_SonyCorporation.pdf

1T402 Product details

Description

The 1T402 is a variable capacitance diode designed for electronic tuning of UHF TV tuners using a super-small-miniature flat package (SSVC).

Features

Super-small-miniature flat package.
Low series resistance: 0.65 Ω Max. (f=470 MHz).
Large capacitance ratio: 6.5 Typ. (C2/C25).
Small leakage current: 10 nA Max. (VR=28 V).
Capacitance deviation in a matching group: within 2 %.
