1T404 Variable Capacitance Diode

1T404 Description

1T404 Variable Capacitance Diode .
The 1T404 is a variable capacitance diode designed for electronic tuning of wide-band CATV tuners using a super-small-miniature flat package (SSVC).

1T404 Features

* Super-small-miniature flat package
* Low series resistance: 0.75 Ω Max. (f=470 MHz)
* Large capacitance ratio: 11.5 Typ. (C2/C25)
* Small leakage current: 10 nA Max. (VR=28 V)

1T404 Applications

* Electronic tuning of wide-band CATV tuners Structure Silicon epitaxial planar type diode M-290 Absolute Maximum Ratings (Ta=25 °C)
* Reverse voltage VR 34
* Operating temperature Topr
* 20 to +75
* Storage temperature Tstg
* 65 to +150 V °C °C Electrical Char

📥 Download Datasheet

Preview of 1T404 PDF

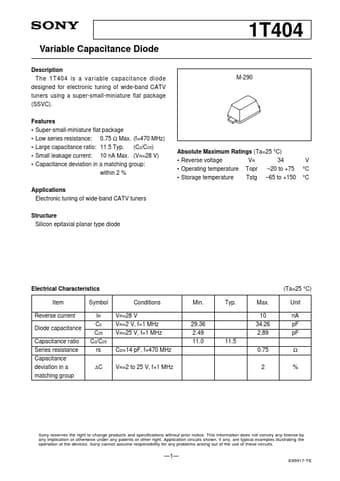

datasheet Preview Page 2 datasheet Preview Page 3
