1T405A Variable Capacitance Diode

1T405A Description

1T405A Variable Capacitance Diode .
The 1T405A is a variable capacitance diode designed for electronic tuning of wide-band CATV tuners using a super-small-miniature flat package (SSVC).

1T405A Features

* Super-small-miniature flat package
* Low series resistance 0.85 Ω Max.
* Large capacitance ratio 12.5 Typ. 1.03 Min.
* Small leakage current 10 nA Max.
* Capacitance deviation within 2 % M-290 (f=470 MHz) (C2/C25) (C25/C28) (VR=28 V) Absolute Maximum Ratin

1T405A Applications

* Electronic tuning of VHF band and wide-band CATV tuners Structure Silicon epitaxial planar type diode Electrical Characteristics Item Reverse current Reverse voltage Diode capacitance Capacitance ratio Series resistance Capacitance deviation in a matching group Symbol IR VR C2 C25 C2/C25 C25/C28 rs

📥 Download Datasheet

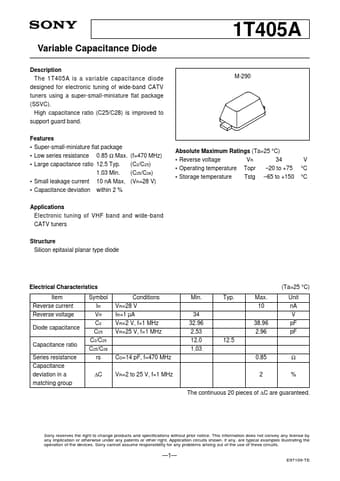

Preview of 1T405A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1T405A
Manufacturer
Sony Corporation
File Size
69.42 KB
Datasheet
1T405A_SonyCorporation.pdf
Description
Variable Capacitance Diode
