CXA1538N Datasheet, Radio, Sony Corporation

CXA1538N Features

• Radio
• Low current consumption (In FM mode ID=11.0 mA, in AM mode 8.5 mA, VCC=6.0 V)
• Built-in LED drive circuit for tuning
• Built-in LED drive circuit for stereo i

PDF File Details

Part number:

CXA1538N

Manufacturer:

Sony Corporation

File Size:

299.31kb

Download:

📄 Datasheet

Description:

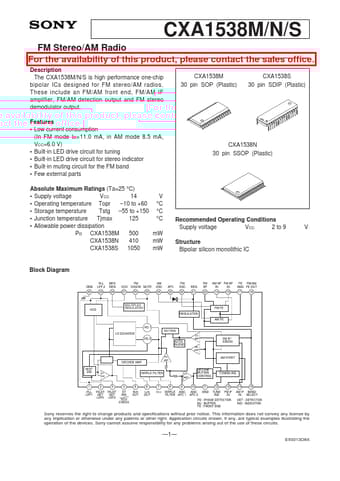

Fm stereo/am radio. The CXA1538M/N/S is high performance one-chip bipolar ICs designed for FM stereo/AM radios. These include an FM/AM front end, FM/AM I

CXA1538N Application

• Applications For C, R (C13, C14, R6, R7) marked∗, refer to “2. MPX circuit” of “Notes on Usage.” CXA1538M/N/S Application circuits shown are typi
