CXA1561S - Dolby B-C Type Noise Reduction System

Sony Corporation

📥 Download Datasheet

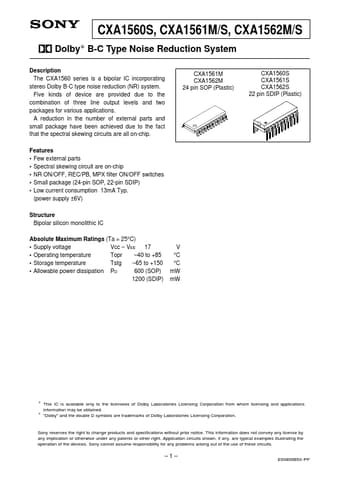

CXA1561S Datasheet Preview — Preview of CXA1561S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA1561S
Manufacturer	Sony Corporation
File Size	347.07 KB
Description	Dolby B-C Type Noise Reduction System
Datasheet	CXA1561S_SonyCorporation.pdf

CXA1561S Product details

Description

The CXA1560 series is a bipolar IC incorporating stereo Dolby B-C type noise reduction (NR) system.

Features

Few external parts.
Spectral skewing circuit are on-chip.
NR ON/OFF, REC/PB, MPX filter ON/OFF switches.
Small package (24-pin SOP, 22-pin SDIP).
Low current consumption 13mA Typ. (power supply ±6V) Structure Bipolar silicon monolithic IC Absolute Maximum Ratings (Ta = 25°C) 17.
Supply voltage Vcc.
VEE.
Operating temperature Topr.
40 to +85.
Storage temperature Tstg.
65 to +150.
Allowable p.
