CXA1562M

Dolby B-C Type Noise Reduction System

Sony Corporation

CXA1562M Features

* Few external parts

* Spectral skewing circuit are on-chip

* NR ON/OFF, REC/PB, MPX filter ON/OFF switches

* Small package (24-pin SOP, 22-pin SDIP)

* Low current consumption 13mA Typ. (power supply ±6V) Structure Bipolar silicon monolithic IC Absolute Maximu

CXA1562M General Description

The CXA1560 series is a bipolar IC incorporating stereo Dolby B-C type noise reduction (NR) system. Five kinds of device are provided due to the combination of three line output levels and two packages for various applications. A reduction in the number of external parts and small package have been .

CXA1562M Datasheet (347.07 KB)

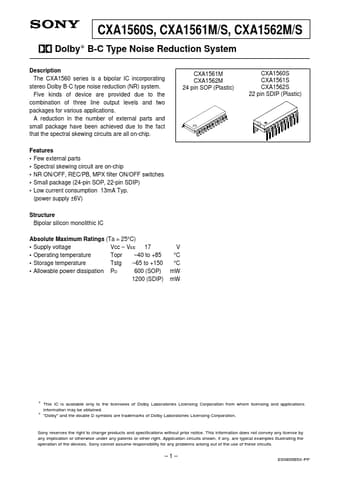

CXA1562M Datasheet Preview — Preview of CXA1562M PDF

Datasheet Details

Part number:

CXA1562M

Manufacturer:

Sony Corporation

File Size:

347.07 KB

Description:

Dolby b-c type noise reduction system.
