CXA1600M Datasheet, Amplifier, Sony Corporation

CXA1600M Features

  • Amplifier
  • EIAJ output=100 mW (typ.) (VCC=3 V, RL=8 Ω)
  • Built-in electrical volume control.
  • No ceramic filter required.
  • Few peripheral components. Applicatio

PDF File Details

Part number:

CXA1600M

Manufacturer:

Sony Corporation

File Size:

142.98kb

Download:

📄 Datasheet

Description:

8-pin single-chip am radio with built-in power amplifier. The CXA1600M/P is an 8-pin single-chip bipolar IC for AM radios. This IC includes all functions from the front-end to the power ampli

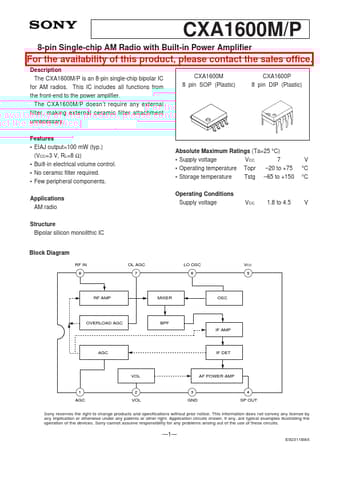

Datasheet Preview: CXA1600M 📥 Download PDF (142.98kb)
Page 2 of CXA1600M Page 3 of CXA1600M

CXA1600M Application

  • Applications AM radio Structure Bipolar silicon monolithic IC CXA1600M 8 pin SOP (Plastic) CXA1600P 8 pin DIP (Plastic) Absolute Maximum Ratings (T
