CXA1616N Datasheet - Sony

Sync Discriminator

CXA1616N Features

* Output of synchronous signal polarity information is obtainable

* Supported polarities and amplitudes of input sig- nals are as follows:

* V. separate sync (positive/negative polarity, 1 to 5Vp-p For capacitor input 1.5 to 5Vp-p)

* H. separate sync (positive/negativ

CXA1616N General Description

The CXA1616N/S automatically selects one of three types of sync signals * separate sync, composite sync, or sync-on video * to shape the waveform. It is ideally suited as a synchronous signal processor for auto tracking type displays. CXA1616N 24 pin SSOP (Plastic) CXA1616S 22 pin .

CXA1616N Datasheet (496.50 KB)

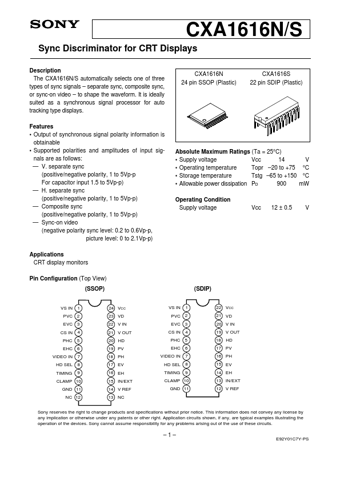

CXA1616N Datasheet Preview — Preview of CXA1616N PDF

Datasheet Details

Part number:

CXA1616N

Manufacturer:

Sony

File Size:

496.50 KB

Description:

Sync discriminator.
