CXA1619BM - FM/AM Radio

Product Overview

Sony Corporation

Part number	CXA1619BM
Manufacturer	Sony Corporation
File Size	198.07 KB
Description	FM/AM Radio
Datasheet	CXA1619BM Datasheet
Additional preview pages of the CXA1619BM datasheet.

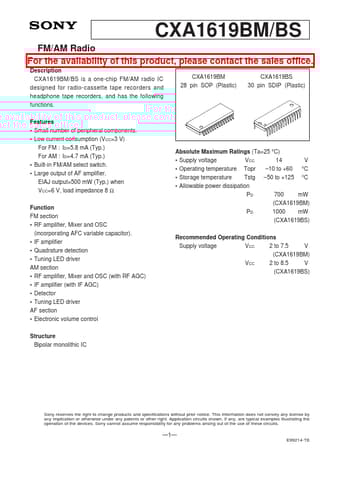

CXA1619BM/BS is a one-chip FM/AM radio IC designed for radio-cassette tape recorders and headphone tape recorders, and has the following functions.

Small number of peripheral components.
Low current consumption (VCC=3 V) For FM : ID=5.8 mA (Typ. ) For AM : ID=4.7 mA (Typ. ).
Built-in FM/AM select switch.
Large output of AF amplifier. EIAJ output=500 mW (Typ. ) when VCC=6 V, load impedance 8 Ω Function FM section.
RF amplifier, Mixer and OSC (incorporating AFC variable capacitor).
IF amplifier.
Quadrature detection.
Tuning LED driver AM section.
RF amplifier, M.
