CXA1690Q

Head Amplifier for Digital CCD Cameras

Sony Corporation

CXA1690Q Features

* Permits higher sensitivity with a high-gain AGC amplifier

* Blanking function for the purpose of calibrating the deviation in black levels of the CCD output signals

* Permits output offset adjustment

* Provides a regulator output pin for the reference voltage for A/

CXA1690Q General Description

The CXA1690Q is a bipolar IC developed as a head amplifier for digital CCD cameras. The CXA1690Q provides the following functions: correlated double sampling, AGC for CCD signals, GCA for chroma signals, GCA for line signals, sample and hold for A/D converters, blanking, and reference voltage output.

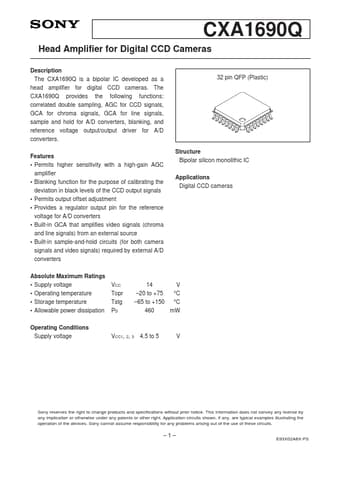

CXA1690Q Datasheet (284.00 KB)

CXA1690Q Datasheet Preview — Preview of CXA1690Q PDF

Datasheet Details

Part number:

CXA1690Q

Manufacturer:

Sony Corporation

File Size:

284.00 KB

Description:

Head amplifier for digital ccd cameras.
