CXA3329ER Datasheet, phones equivalent, Sony Corporation

PDF File Details

Part number: CXA3329ER

Manufacturer: Sony Corporation

File Size: 126.52KB

Download: 📄 Datasheet

Description: Analog Signal Processor TX-IF IC for W-CDMA Cellular Phones

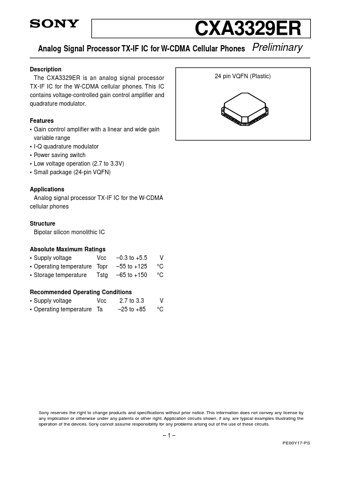

Datasheet Preview: CXA3329ER 📥 Download PDF (126.52KB)

CXA3329ER Description


The CXA3329ER is an analog signal processor TX-IF IC for the W-CDMA cellular phones. This IC contains voltage-controlled gain control amplifier and quadrature modulator. Features
* Gain control amplifier with a linear and wide gain variable range.

CXA3329ER Features and benefits


* Gain control amplifier with a linear and wide gain variable range
* I-Q quadrature modulator
* Power saving switch
* Low voltage operation (2.7 to 3.3V).

CXA3329ER Application

Analog signal processor TX-IF IC for the W-CDMA cellular phones Structure Bipolar silicon monolithic IC Absolute Maximum.

Image gallery

Page 2 of CXA3329ER Page 3 of CXA3329ER
