CXD1254AQ Datasheet PDF (CCD Camera Synchronization and Timing Signal Generator)

CXD1254AQ - CCD Camera Synchronization and Timing Signal Generator

Description

The CXD1254AR and CXD1254AQ Ics generates the necessary synchronization and timing signals for camera systems employing CCD image sensors (ICX044, ICX045, ICX046, etc.).

Features

Supports color (NTSC) and black & white (EIA/CCIR) systems.
On-chip electronic shutter.
On-chip horizontal (H) driver.
Timing generator for mirror images.

Datasheet Details

Part number	CXD1254AQ
Manufacturer	Sony Semiconductor Solutions
File Size	826.36 KB
Description	CCD Camera Synchronization and Timing Signal Generator
Datasheet	CXD1254AQ Datasheet

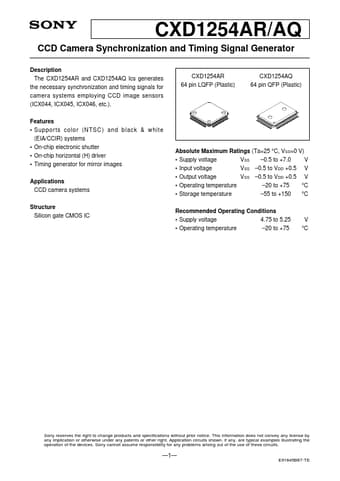

Additional preview pages of the CXD1254AQ datasheet.

📁 Similar Datasheet

CXD1256R - CCD Camera Timing Generator (Sony)

CXD101-106Q - CMOS Digital Delay Line (ETC)

CXD104-114Q - C-MOS MEMORY SEQUENCER (ETC)

CXD1088AQ - Over Sampling Digital Filter (Sony)

CXD1095AR - CMOS I/O Expander (ETC)

CXD1095Q - CMOS I/O Port Expander (ETC)

CXD1132Q - CMOS Time Code Generator / Reader (ETC)

CXD1133Q-321 - CMOS 8 Bit Microcomputer (ETC)

CXD1151Q - Video Signal Processor (ETC)

CXD1156Q - (CXD1156Q/R) Timing Generator IC (Sony)

Full PDF Text Transcription

Click to expand full text

CXD1254AR/AQ CCD Camera Synchronization and Timing Signal Generator Description The CXD1254AR and CXD1254AQ Ics generates the necessary synchronization and timing signals for camera systems employing CCD image sensors (ICX044, ICX045, ICX046, etc.). Features • Supports color (NTSC) and black & white (EIA/CCIR) systems • On-chip electronic shutter • On-chip horizontal (H) driver • Timing generator for mirror images Applications CCD camera systems Structure Silicon gate CMOS IC CXD1254AR 64 pin LQFP (Plastic) CXD1254AQ 64 pin QFP (Plastic) Absolute Maximum Ratings (Ta=25 °C, VSS=0 V) • Supply voltage VSS –0.5 to +7.0 V • Input voltage VSS –0.5 to VDD +0.5 V • Output voltage VSS –0.5 to VDD +0.

Published: Mar 27, 2005 |
