CXG1091TN, SP4T GSM Dualband Antenna Switch 5V + Logic

CXG1091TN SP4T GSM Dualband Antenna Switch 5V + Logic For the availability of this product, please contact the sales office..
The SP4T + logic is a high power antenna switch MMIC for use in dualband GSM handsets.

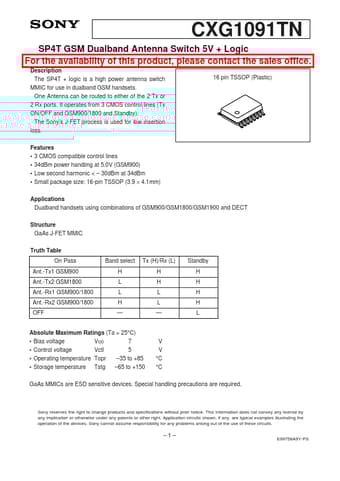

datasheet Preview Page 1 from Datasheet4u.com

CXG1091TN_SonyCorporation.pdf

CXG1091TN Datasheet Preview — Preview of CXG1091TN PDF

Datasheet Details

Part number:

CXG1091TN

Manufacturer:

Sony Corporation

File Size:

57.57 KB

Description:

SP4T GSM Dualband Antenna Switch 5V + Logic

Features

* 3 CMOS compatible control lines
* 34dBm power handling at 5.0V (GSM900)
* Low second harmonic <
* 30dBm at 34dBm

Applications

* Dualband handsets using combinations of GSM900/GSM1800/GSM1900 and DECT Structure GaAs J-FET MMIC Truth Table On Pass Ant. -Tx1 GSM900 Ant. -Tx2 GSM1800 Ant. -Rx1 GSM900/1800 Ant. -Rx2 GSM900/1800 OFF Band select H L L H
* Tx (H)/Rx (L) H H L L
* Standby H H H H L 16 pin TSSOP (Plastic)
