CXL1008M - CMOS-CCD Signal Processor for Skew Compensation

Sony Corporation

📥 Download Datasheet

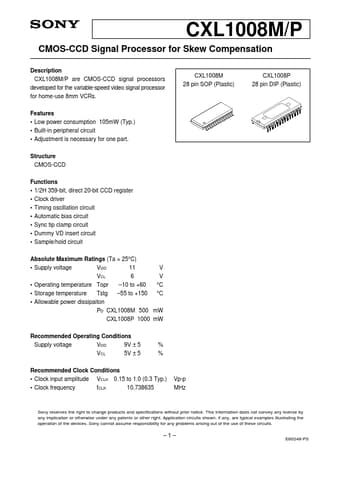

CXL1008M Datasheet Preview — Preview of CXL1008M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXL1008M
Manufacturer	Sony Corporation
File Size	274.53 KB
Description	CMOS-CCD Signal Processor for Skew Compensation
Datasheet	CXL1008M_SonyCorporation.pdf

CXL1008M Product details

Description

CXL1008M/P are CMOS-CCD signal processors developed for the variable-speed video signal processor for home-use 8mm VCRs.

Features

Low power consumption 105mW (Typ. ).
Built-in peripheral circuit.
Adjustment is necessary for one part. Structure CMOS-CCD Functions.
1/2H 359-bit, direct 20-bit CCD register.
Clock driver.
Timing oscillation circuit.
Automatic bias circuit.
Sync tip clamp circuit.
Dummy VD insert circuit.
Sample/hold circuit Absolute Maximum Ratings (Ta = 25°C).
Supply voltage VDD 11 V VCL 6 V.
Operating.
