CXL1504M Datasheet, Ntsc, Sony Corporation

✔ CXL1504M Features

Single 5V power supply
14.3MHz driver
Low power consumption at 160mW (Typ.)
Built-in peripheral circuits
Completely adjustment free Functions
905.5-bit CCD re

PDF File Details

Sony Corporation manufacturer logo

Part number:

CXL1504M

Manufacturer:

Sony Corporation

File Size:

113.07 KB

Download:

📄 Datasheet

Description:

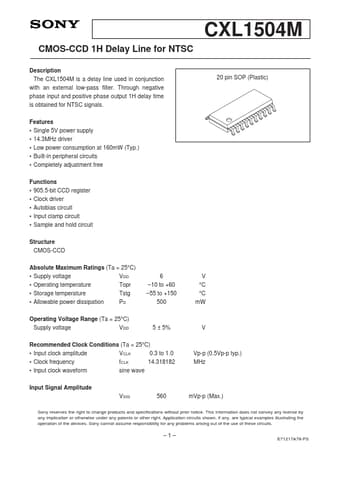

Cmos-ccd 1h delay line for ntsc. The CXL1504M is a delay line used in conjunction with an external low-pass filter. Through negative phase input and positive phase ou
