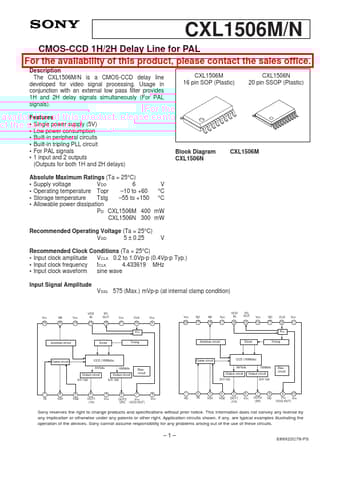

CXL1506N Datasheet Preview — Preview of CXL1506N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CXL1506N
Manufacturer: Sony Corporation
File Size: 170.51 KB
Datasheet: CXL1506N_SonyCorporation.pdf
Description: CMOS-CCD 1H/2H Delay Line for PAL

CXL1506N Product details

Description

The CXL1506M/N is a CMOS-CCD delay line developed for video signal processing.

Features

Single power supply (5V).
Low power consumption.
Built-in peripheral circuits.
Built-in tripling PLL circuit.
For PAL signals.
1 input and 2 outputs (Outputs for both 1H and 2H delays) Absolute Maximum Ratings (Ta = 25°C).
Supply voltage VDD 6 V.
Operating temperature Topr.
10 to +60 °C.
Storage temperature Tstg.
55 to +150 °C.
Allowable power dissipation PD CXL1506M 400 mW CXL1506N 300 mW.
