CXL1505M - CMOS-CCD Signal Processor

Sony Corporation

📥 Download Datasheet

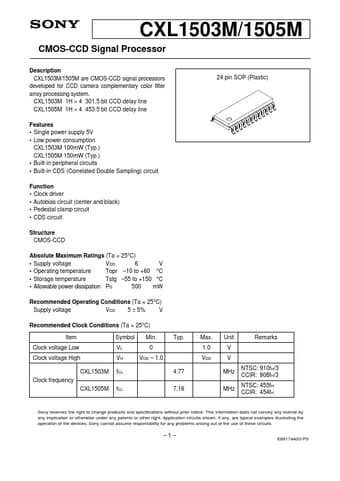

CXL1505M Datasheet Preview — Preview of CXL1505M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CXL1505M
Manufacturer: Sony Corporation
File Size: 179.38 KB
Datasheet: CXL1505M_SonyCorporation.pdf
Description: CMOS-CCD Signal Processor

CXL1505M Product details

Description

CXL1503M/1505M are CMOS-CCD signal processors developed for CCD camera complementary color filter array processing system.

Features

Single power supply 5V.
Low power consumption CXL1503M 100mW (Typ. ) CXL1505M 150mW (Typ. ).
Built-in peripheral circuits.
Built-in CDS (Correlated Double Sampling) circuit Function.
Clock driver.
Autobias circuit (center and black).
Pedestal clamp circuit.
CDS circuit Structure CMOS-CCD Absolute Maximum Ratings (Ta = 25°C) 6 V.
Supply voltage VDD.
Operating temperature Topr.
10 to +60 °C.
S.
