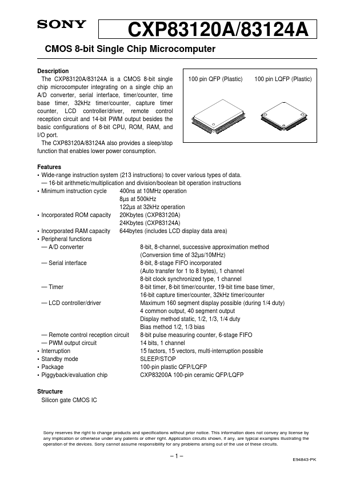

CXP83120A CMOS 8-bit Single Chip Microcomputer

The CXP83120A/83124A is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, 32kHz timer/counter, capture timer counter, LCD controller/driver, remote control reception circuit and 14-bit PWM output besides the basic .

CXP83120A Features

* Wide-range instruction system (213 instructions) to cover various types of data.

* 16-bit arithmetic/multiplication and division/boolean bit operation instructions

* Minimum instruction cycle 400ns at 10MHz operation 8µs at 500kHz 122µs at 32kHz operation

* Incorpor
