CXP913040 - CMOS 16-bit Single Chip Microcomputer

Sony Corporation

The CXP913040 by Sony Corporation is a CMOS 16-bit Single Chip Microcomputer. Below is the official datasheet preview.

📥 Download Datasheet

CXP913040 CMOS 16-bit Single Chip Microcomputer by Sony Corporation - Datasheet Preview — Official preview page of the **CXP913040** CMOS 16-bit Single Chip Microcomputer datasheet (Sony Corporation).

Datasheet Details

Part number	CXP913040
Manufacturer	Sony Corporation
File Size	307.21 KB
Description	CMOS 16-bit Single Chip Microcomputer
Datasheet	CXP913040_SonyCorporation.pdf

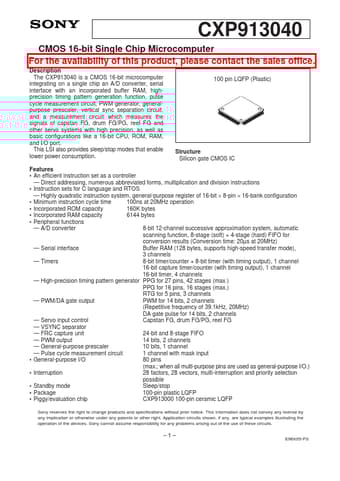

Additional preview pages of the CXP913040 datasheet.

CXP913040 Product details

Description

The CXP913040 is a CMOS 16-bit microcomputer integrating on a single chip an A/D converter, serial interface with an incorporated buffer RAM, highprecision timing pattern generation function, pulse cycle measurement circuit, PWM generator, generalpurpose prescaler, vertical sync separation circuit, and a measurement circuit which measures the signals of capstan FG, drum FG/PG, reel FG and other servo systems with high precision, as well as basic configurations like a 16-bit CPU, ROM, RAM, and I/

Features

An efficient instruction set as a controller.
Direct addressing, numerous abbreviated forms, multiplication and division instructions.
Instruction sets for C language and RTOS.
Highly quadratic instruction system, general-purpose register of 16-bit × 8-pin × 16-bank configuration.
Minimum instruction cycle time 100ns at 20MHz operation.
Incorporated ROM capacity 160K bytes.
Incorporated RAM capacity 6144 bytes.
Peripheral f.
