CXP921000A - CMOS 16-bit Single Chip Microcomputer

Sony Corporation

The CXP921000A by Sony Corporation is a CMOS 16-bit Single Chip Microcomputer. Below is the official datasheet preview.

📥 Download Datasheet

CXP921000A CMOS 16-bit Single Chip Microcomputer by Sony Corporation - Datasheet Preview — Official preview page of the **CXP921000A** CMOS 16-bit Single Chip Microcomputer datasheet (Sony Corporation).

Datasheet Details

Part number	CXP921000A
Manufacturer	Sony Corporation
File Size	273.54 KB
Description	CMOS 16-bit Single Chip Microcomputer
Datasheet	CXP921000A_SonyCorporation.pdf

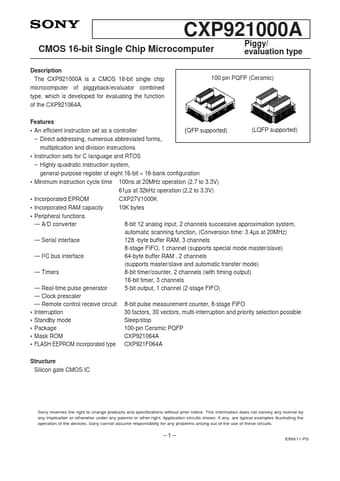

Additional preview pages of the CXP921000A datasheet.

CXP921000A Product details

Description

The CXP921000A is a CMOS 16-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP921064A.

Features

(LQFP supported) (QFP supported).
An efficient instruction set as a controller.
Direct addressing, numerous abbreviated forms, multiplication and division instructions.
Instruction sets for C Ianguage and RTOS.
Highly quadratic instruction system, general-purpose register of eight 16-bit × 16-bank configuration.
Minimum instruction cycle time 100ns at 20MHz operation (2.7 to 3.3V) 61µs at 32kHz operation (2.2 to 3.3V).
Incorporated EPROM CXP2.
