ICX068AKB

CCD Image Sensor

ICX068AKB Datasheet (237.86 KB)

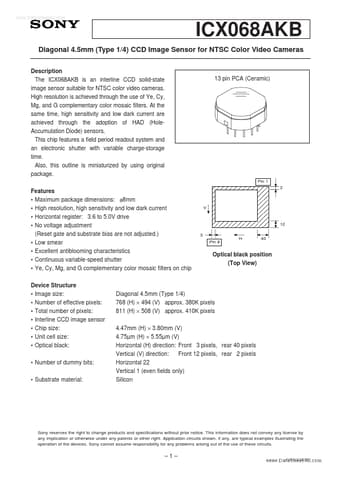

Preview of ICX068AKB PDF Datasheet

Datasheet Details

Part number:

ICX068AKB

Manufacturer:

Sony Corporation

File Size:

237.86 KB

Description:

Ccd image sensor

ICX068AKB Features

* a field period readout system and an electronic shutter with variable charge-storage time. Also, this outline is miniaturized by using original package. Features

* Maximum package dimensions: φ8mm

* High resolution, high sensitivity and low dark current

* Horizontal register:

ICX068AKB General Description

The ICX068AKB is an interline CCD solid-state image sensor suitable for NTSC color video cameras. High resolution is achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters. At the same time, high sensitivity and low dark current are achieved through the adoption of HAD (Hol.
