CXA1310AQ - Single Chip Processing for CCD Monochrome Camera

Product Overview

Sony

📥 Download Datasheet

CXA1310AQ Single Chip Processing for CCD Monochrome Camera by Sony - Datasheet Preview — Datasheet preview – CXA1310AQ

Datasheet Details

Part number	CXA1310AQ
Manufacturer	Sony
File Size	210.02 KB
Description	Single Chip Processing for CCD Monochrome Camera
Datasheet	CXA1310AQ Datasheet

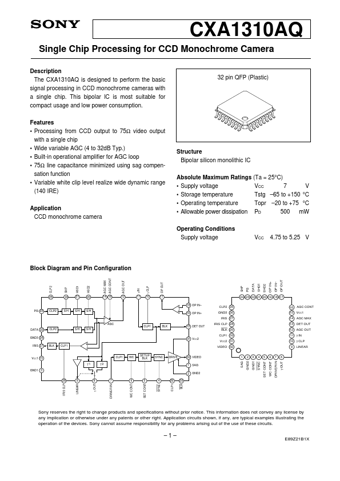

Additional preview pages of the CXA1310AQ datasheet.

Product details

Description

The CXA1310AQ is designed to perform the basic signal processing in CCD monochrome cameras with a single chip.

Features

Processing from CCD output to 75Ω video output with a single chip.
Wide variable AGC (4 to 32dB Typ. ).
Built-in operational amplifier for AGC loop.
75Ω line capacitance minimized using sag compensation function.
Variable white clip level realize wide dynamic range (140 IRE).
