CXA3813N

2 CHANNEL AUDIO AMPLIFIER

Sony

CXA3813N Features

* Headphone amplifier

* 2-channel audio line amplifier

* Operating voltage

* Operating current

* Pop noise free at power On/Off and mute

* Package +12dB fixed gain Amplifier1: +12dB fixed gain Amplifier2: +12dB fixed gain, 2 stereo input multiplexer VCC_HP = VCC_AMP1 = 8 to

CXA3813N General Description

The CXA3813N is a headphone amplifier and 2-channel stereo audio line amplifiers IC. Each amplifier has a fixed gain and mute function. Pop noise of 2-channel stereo audio line amplifiers is free at power on/off and Mute. 1-channel stereo audio line amplifier has 2 stereo input multiplexer. The CXA3.

CXA3813N Datasheet (302.91 KB)

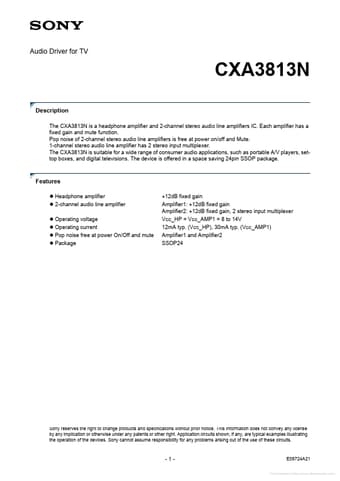

CXA3813N Datasheet Preview — Preview of CXA3813N PDF

Datasheet Details

Part number:

CXA3813N

Manufacturer:

Sony

File Size:

302.91 KB

Description:

2 channel audio amplifier.
