CXA3017R, Decoder/Driver/Timing Generator for Color LCD Panels

CXA3017R Decoder/Driver/Timing Generator for Color LCD Panels For the availability of this product, please contact the sales office..
The CXA3017R is an IC designed to drive the color LCD panels LCX005BK/BKB, LCX009AK/AKB, LCX024AK/AKB, LCX027AK/AKB and DCX501BK.

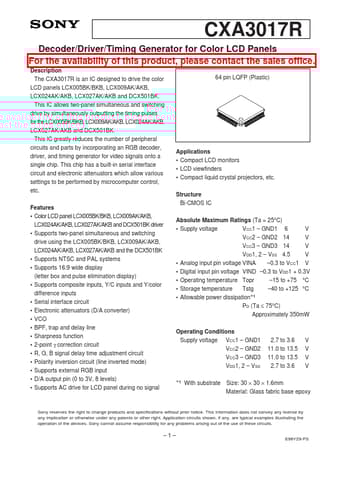

datasheet Preview Page 1 from Datasheet4u.com

CXA3017R_SonyCorporation.pdf

CXA3017R Datasheet Preview — Preview of CXA3017R PDF

Datasheet Details

Part number:

CXA3017R

Manufacturer:

Sony Corporation

File Size:

1.78 MB

Description:

Decoder/Driver/Timing Generator for Color LCD Panels

Features

* Color LCD panel LCX005BK/BKB, LCX009AK/AKB, LCX024AK/AKB, LCX027AK/AKB and DCX501BK driver
* Supports two-panel simultaneous and switching drive using the LCX005BK/BKB, LCX009AK/AKB, LCX024AK/AKB, LCX027AK/AKB and the DCX501BK
* Supports NTSC and PAL systems
* Suppo

Applications

* Compact LCD monitors
* LCD viewfinders
* Compact liquid crystal projectors, etc. Structure Bi-CMOS IC Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VCC1
* GND1 6 V VCC2
* GND2 14 V VCC3
* GND3 14 V VDD1, 2
* VSS 4.5 V
