CXA3355TQ - GPS Down Converter IC

CXA3355TQ Description

www.DataSheet4U.com GPS Down Converter IC CXA3355TQ .
The CXA3355TQ is an IC developed as a GPS RF down converter.

CXA3355TQ Features

* ‹ Includes all functions required for the GPS down converter ‹ Low voltage operation: VCC = 1.6 to 2.0V ‹ Low current consumption (active mode): 11mA (Typ. at VCC = 1.8V, IF ≈ 1MHz) ‹ Low current consumption (power save mode) < 1µA ‹ Total gain ≈ 100dB ‹ Total NF ≈ 4.0dB ‹ On-chip VCO and PLL ‹ Sele

📥 Download Datasheet

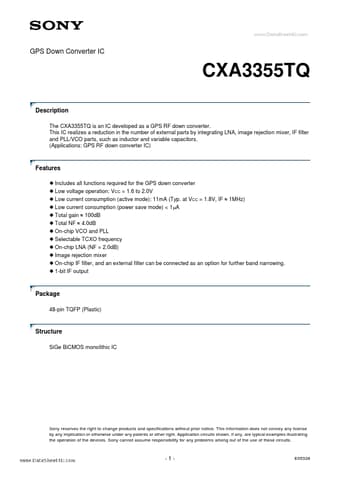

Preview of CXA3355TQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA3355TQ
Manufacturer
Sony
File Size
293.67 KB
Datasheet
CXA3355TQ_Sony.pdf
Description
GPS Down Converter IC
