CXA3314ER - 6GHz PLL

CXA3314ER Description

CXA3314ER 6GHz PLL .
The CXA3314ER is a general-purpose PLL IC which directly frequency divides RF up to 6GHz in combination with an external VCO and loop.

CXA3314ER Features

* Low current consumption: 9mA (typ. at VCC = 3V)
* Low voltage operation: 2.7 to 3.3V
* Small package: 24-pin VQFN (plastic)
* Supports sleep mode: 10µA (max. at VCC = 3V)
* Data setting by a 3-wire interface
* Reference frequency divider Reference co

CXA3314ER Applications

* This IC is ideal for the synthesizers of microwave communications equipment up to 6GHz and general-purpose PLL synthesizers such as in highspeed, high frequency measurement equipment.
* ETC (ITS) related
* VCO modules
* Wireless LAN communications
* High-speed, high f

📥 Download Datasheet

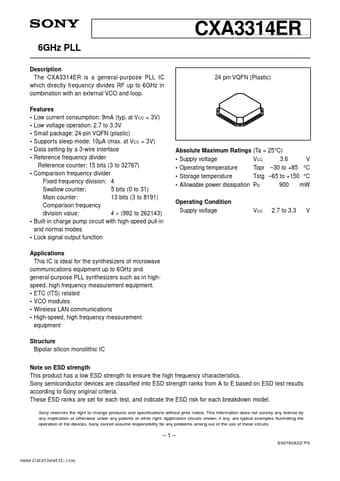

Preview of CXA3314ER PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA3314ER
Manufacturer
Sony
File Size
197.24 KB
Datasheet
CXA3314ER_Sony.pdf
Description
6GHz PLL
