CXA3355ER - GPS Down Converter IC

CXA3355ER Description

CXA3355ER GPS Down Converter IC .
The CXA3355ER is an IC developed as a GPS RF down converter.

CXA3355ER Features

* Includes all functions required for the GPS down converter
* Low voltage operation: VCC = 1.6 to 2.0V
* Low current consumption (active mode): 11mA (Typ. at VCC = 1.8V, IF ≈ 1MHz)
* Low current consumption (power save mode) < 1µA
* Total gain ≈ 100dB

CXA3355ER Applications

* GPS down converter IC Structure SiGe BiCMOS monolithic IC 44 pin VQFN (Plastic) www. DataSheet4U. com Absolute Maximum Ratings (Ta
* Supply voltage VCC1 VCC2 VCC3
* Operating temperature Topr
* Storage temperature Tstg = 25°C)
* 0.2 to +2.5 V
* 0.2 to +3.6 V

📥 Download Datasheet

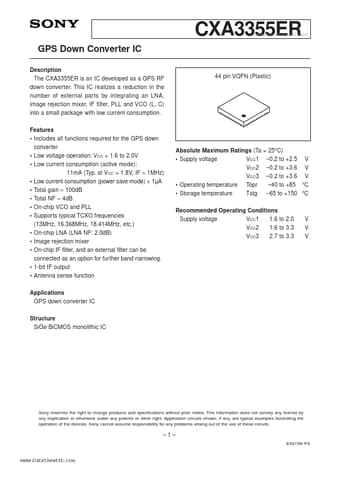

Preview of CXA3355ER PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA3355ER
Manufacturer
Sony
File Size
336.25 KB
Datasheet
CXA3355ER_Sony.pdf
Description
GPS Down Converter IC
